Today, manufacturers face increasing pressure to improve productivity while maintaining consistent quality standards. SL Laser addresses these requirements with projection systems that transfer CAD-based positioning data directly onto work surfaces, welding tables and assemblies in a true 1:1 scale. This allows workers to position components precisely without templates, manual measurements or time-consuming calibration processes.

Laser projection replaces templates and manual positioning

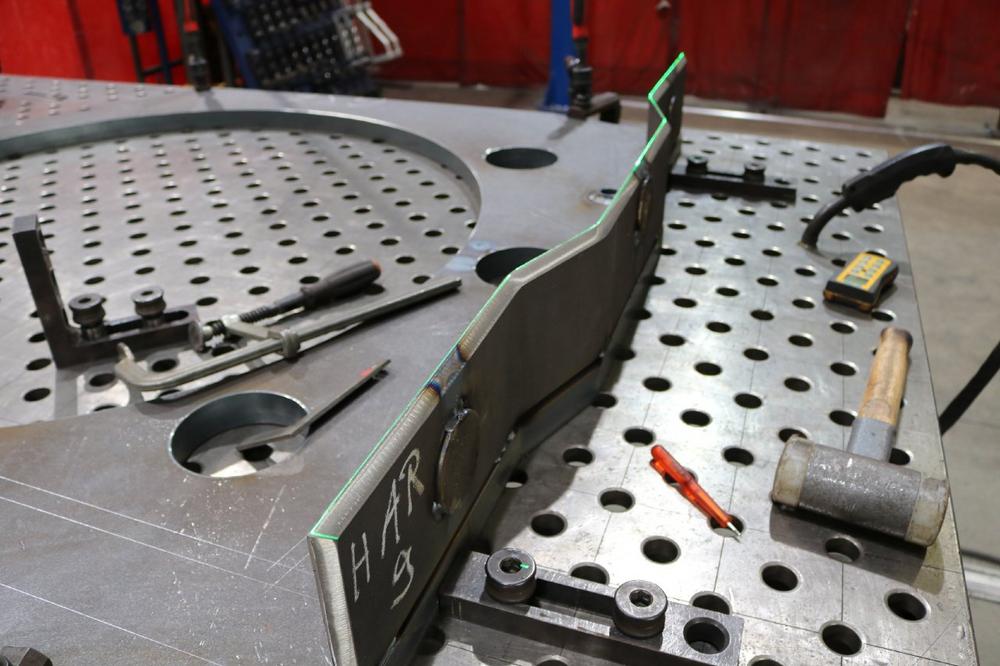

In many metalworking applications, positioning errors and drawing misinterpretations remain common causes of material waste and production delays. SL Laser projection systems eliminate these risks by projecting exact stop lines, measuring points and complete work plans directly onto the workpiece.

The computer-controlled operator software enables fast and precise alignment of complete assemblies. Whether installed permanently above a welding table or integrated into movable rail systems, the projectors simplify production workflows while improving repeatability and process reliability.

A key advantage is the direct integration of DXF, IGES and other data from CAD systems. Projection data is transferred directly from the customer’s CAD software and displayed accurately at any required scale or height. Design modifications can therefore be implemented immediately without creating new templates or printing updated drawings.

Proven productivity improvements in daily production

According to SL Laser, customers in the metal sector have achieved substantial productivity gains using laser projection systems. One example highlighted in the document is the long-term use of projection lasers at Holl-Stahlbau GmbH. The company reports that productivity in tacking stair railings doubled after introducing the system. At the same time, component waste caused by drawing interpretation errors was reduced to zero because workers receive the projected component layout directly on the work surface in full scale.

The elimination of printed production drawings also reduces paper consumption and simplifies shop floor communication. Employees benefit from clearer workflows and easier positioning procedures, while manufacturers gain higher consistency and lower production costs.

Designed for industrial environments

SL Laser systems are engineered for demanding industrial conditions. The dust-tight construction ensures reliable operation not only in metalworking, but also in woodworking, composite manufacturing and precast concrete production.

The projection technology supports complex free-form molds, welding tables and large assemblies with millimeter-level positioning accuracy. Depending on production requirements, systems can be permanently mounted or integrated into rail systems for flexible movement across extended workspaces.

Key benefits of SL Laser projection systems

According to the product information, the most important advantages include:

• Time savings of 25–30%
• Elimination of templates and manual calibration
• Millimeter-accurate positioning
• Immediate implementation of drawing changes
• Reduced risk of forgotten or incorrectly positioned components

Focus on quality, process reliability and competitiveness

By combining CAD integration, laser projection and intuitive operator software, SL Laser enables manufacturers to standardize workflows while reducing manual effort. Quality assurance becomes easier because setup specifications and positioning processes are visually controlled and directly verifiable.

As production environments continue to evolve toward higher complexity and shorter production cycles, SL Laser sees laser projection technology as an increasingly important tool for efficient and reliable manufacturing in the metal industry.

SL Laser – Laser technology for positioning and alignment in industrial manufacturing.
