Typical applications for the Han® 1A include three-phase drives in mechanical engineering. Cables with thicker insulation are also used in the railway sector. With the Size 2 cable adapter, the Han® 1A becomes a viable option for both sectors. HARTING has developed the adapter for integrating cables with a larger outer diameter into the Han® 1A design. Therefore, even conductors with diameters of 10 to 13 mm can now be used in what is currently the smallest Han® connector. The adapter consists of a seal and a pressure nut and is fully compatible with all existing Han® 1A contact inserts. The hinged design ensures the seamless integration of different cable diameters.
Han® 1A Drive – compact screw-mounted housing
Further innovations improve installation efficiency. Thanks to its dimensions and modular design, the Han® 1A series is particularly suitable for connecting sensors, drives, door systems and lighting. A screw-mounted housing is now available specifically for compact motors/drives and control cabinet applications, which can be installed with virtually no tools. The angled housing is e.g. fed through an M20 through-hole in a motor terminal box or a control cabinet – and secured quickly and easily with an M20 lock nut. The new housing is compatible with all inserts in the Han® 1A series.
Benefits

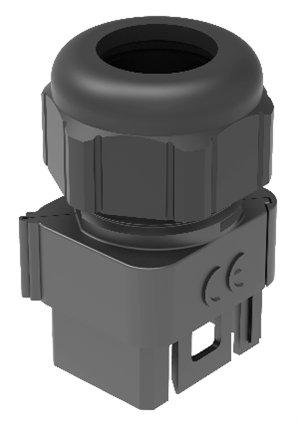

Cable Entry Size 2
Han® 1A Drive
The HARTING Technology Group is a leading global provider of industrial connectivity. Around 6,100 employees are active across the globe in 42 sales companies, 14 production facilities and seven R&D sites. HARTING connectivity solutions are used to transmit data, signals and power in numerous industrial sectors. Among others, in transportation, electromobility, automation and mechanical engineering as well as in generation, storage and distribution of renewable energy. In the 2024/25 business year the family owned and managed company generated sales of 1.1 billion euros.
