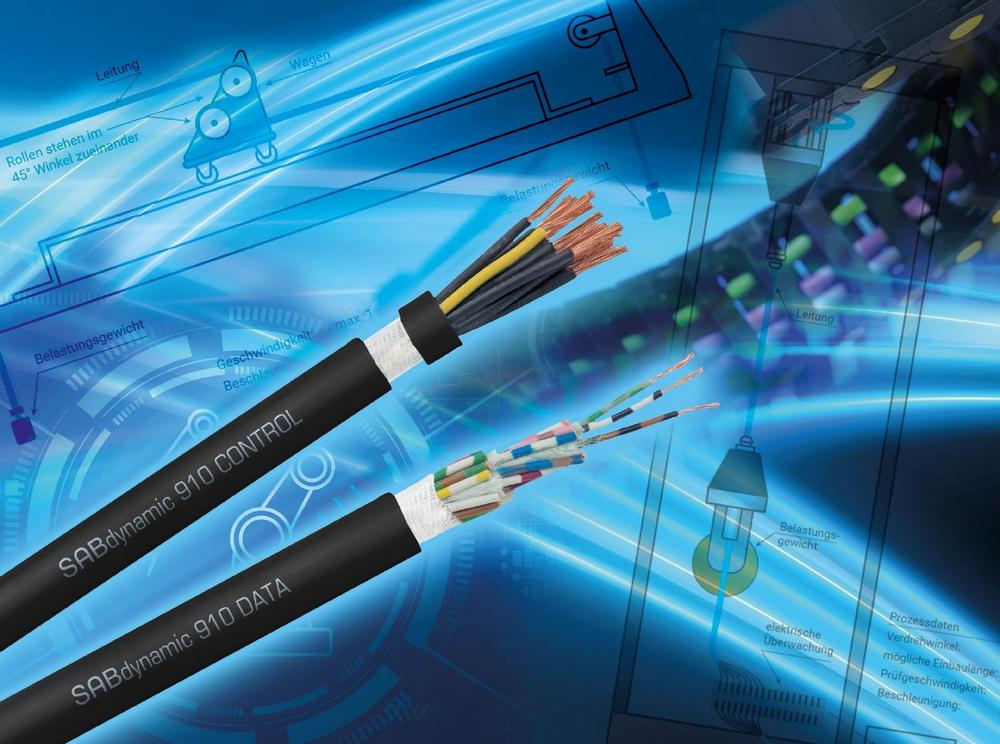

SAB Bröckskes presents SABdynamic 900 and 910, a new generation of CSA and UL/cUL approved cables – made in Germany for worldwide use. The special cable manufacturer thus extends its range by permanently flexible control and data cables, which are equally suitable for drag chains and robot-compatible torsion applications. Both cable variants can withstand over 10 million bending cycles and over 10 million torsion cycles up to ±180°/m or 5 million up to ±360°/m. An added advantage of the new generation is the reduced cable capacitance. The SABdynamic 900 and 910 data variants achieve very high signal integrity, due to the reduced material thickness of the SABIX-based insulating sleeve. Therefore, they ensure interference-free and loss-free data transmission for real-time applications even with cable lengths over 20 m. The new SABdynamic 900 and 910 cable series, each manufactured in control and data versions, are designed for voltages up to 350 V and 600 V respectively and can withstand temperatures between -40 °C and 90 °C. In addition, they have an excellent TMPU-tested oil resistance according to EN 50363-10-2 and VDE 0207-363-10-2 as well as good chemical resistance to acids, alkalis, solvents and hydraulic fluids.

They are UV-resistant according to HD 605, ozone-proof according to DIN EN 50396, saltwater-resistant according to UL 1309 as well as RoHS-compliant and LABS-non-critical. In addition, both versions are PFAS-free, which offers users operational safety even in the event of a PFAS ban. Thanks to the halogen-free material mix with a flame-retardant, self-extinguishing PUR jacket, both product series meet the approval criteria for the North American market. SAB Bröckskes supplies S900 Data by default in the format 12 x 0.14 mm² as a multi-core unshielded cable as well as in four multi-pair shielded variants. The S910 Data version is available in three standard versions. SAB Bröckskes offers standard control cables as two multi-core unshielded and two multi-core shielded options. On request, the manufacturer develops and produces bespoke solutions with customer-specific dimensions, different sheath colors and individual cable designs.
