Robust performance for industrial and embedded applications

Equipped with an Intel® Core™ Ultra 5 processor (Meteor Lake-U), the CORE 5 Ultra delivers impressive performance thanks to integrated Intel® Xe graphics and DDR5-5600 memory (up to 96 GB). The integrated NPU provides dedicated AI acceleration with up to 20× performance-per-watt improvement – ideal for machine vision, predictive maintenance, and data-intensive applications.

With a temperature range of 0 °C to +35°C and the external DC input (9–24 V), the CORE 5 Ultra is perfectly suited for deployment in harsh industrial environments.

Wide range of video and data interfaces

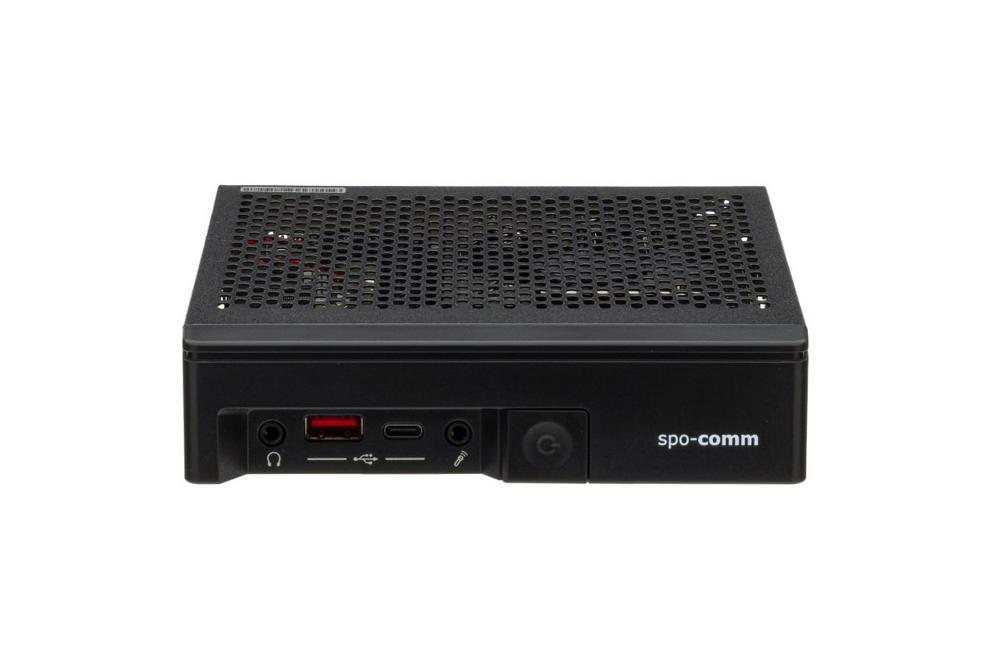

Despite its compact dimensions of only 140 × 148 mm, the CORE 5 Ultra offers exceptional connectivity. For video output, it features two DisplayPort 1.4a connectors, one USB-C port with DisplayPort Alt Mode, and another USB-C port with Thunderbolt™ 4/USB4 support, enabling up to four 4K displays or two 8K displays to be driven simultaneously.

For data connectivity, the Mini-PC includes four USB 3.2 Gen2 Type A ports, one USB-C 3.2 Gen2x2 and one USB-C with Thunderbolt™ 4. It also offers two LAN interfaces – an Intel® GbE LAN with iAMT and a Realtek 5 GbE LAN with teaming and TSN support – as well as one COM RS-232 port, two SATA 6G connectors, and a total of four M.2 slots (Key M, Key B, Key E) for storage and expansion modules.

Flexible storage and operating system options

The CORE 5 Ultra supports up to 2× M.2 NVMe PCIe 4.0 SSDs and offers options for WLAN/Bluetooth via M.2 Key E. Supported operating systems include Windows 11, Windows 10 IoT, and Linux.

With its AI-ready architecture, support for cutting-edge graphics and I/O standards, and robust design, the CORE 5 Ultra is the ideal platform for edge computing, smart manufacturing, industrial image processing, or complex control applications. The system is available now and can be configured and ordered at www.spo-comm.de.

Key features and technical data at a glance:

• CPU: Intel® Core™ Ultra 5 125U (Meteor Lake-U)
• GPU: Integrated Intel® Xe graphics with up to 64 execution units
• Support for up to 4× 4K60 HDR or 2× 8K60 displays
• Up to 96 GB DDR5-5600 RAM (2× SO-DIMM)
• Integrated NPU for AI acceleration (up to 11 TOPS)
• Up to 2× M.2 NVMe PCIe 4.0 SSD
• Extended temperature range: 0 °C to +60 °C
• Wide range DC-In 9–24 V (internal/external)
• Compact dimensions: 140 × 148 mm (mSTX)
• 24/7 operation for industrial applications

Ports:

• USB: 4× USB 3.2 Gen2 Type A, 1× USB-C 3.2 Gen2x2, 1× USB-C with Thunderbolt™ 4/USB4
• Video: 2× DisplayPort 1.4a, 1× USB-C with DP Alt Mode, 1× USB-C with Thunderbolt™ 4
• LAN: 1× Intel® GbE LAN (iAMT), 1× Realtek 5 GbE LAN (TSN, Teaming)
• Serial: 1× COM RS-232
• Expansion: 4× M.2 (2× Key M, 1× Key B, 1× Key E)
• Audio: Mic-in, Line-out
