NL8802: Low Noise, High Voltage, Dual, High-Quality Sound Audio Operational Amplifier

Nisshinbo Micro Devices Inc. has launched the NL8802, a high-quality sound dual operational amplifier, on November 28, 2023.

Nisshinbo Micro Devices Inc. has released a variety of audio operational amplifiers, such as the MUSES series, based on our technology for high-quality sound cultivated over many years. The NL8802 is the entry-level model of the MUSES series and is a high-quality sound audio operational amplifier with a good balance of sound quality, performance and cost. Its high operating voltage of ±22 V makes it ideal for HiFi and professional audio equipment requiring a wide dynamic range.

In addition to a general surface mount package, we will also offer a small and high heat dissipation package (under development) suitable for portable audio equipment and products requiring high density mounting.

Features

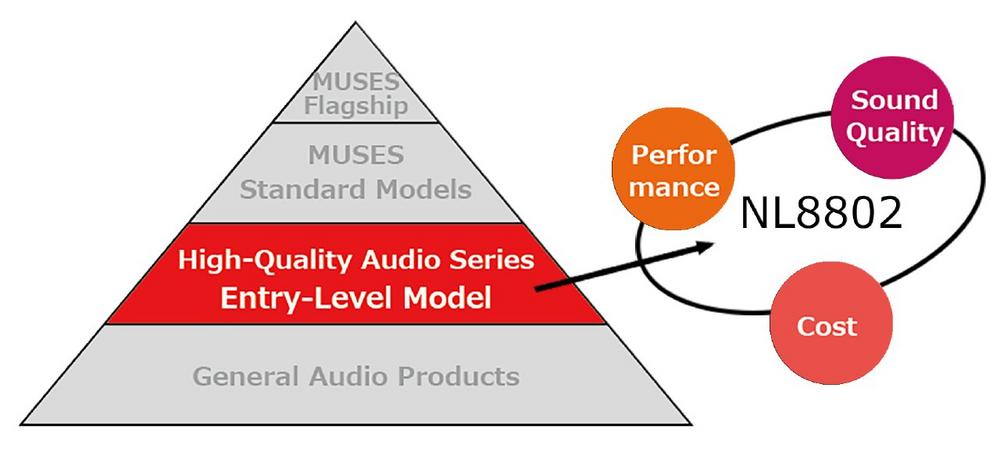

  1. Entry-Level Model of High-Quality Sound Audio Operational Amplifier with Excellent Balance of Sound Quality, Performance, and Cost.

By applying the high-quality sound technology developed for the MUSES series to a more productive technology, we optimized the balance between sound quality, performance and cost.

  1. High Operating Voltage of ±22 V and Excellent Audio Characteristics

Its high operating voltage of ±22 V makes it ideal for hi-fi and professional audio equipment requiring a wide dynamic range. It is also suitable for a wide range of applications thanks to its excellent audio characteristics such as distortion, bandwidth and slew rate.

  1. Small and High Heat Dissipation Package

We will also offer DFN3030-8-GQ package, a small and high heat dissipation package (under development), suitable for portable audio equipment and products requiring high density mounting.

Main Specifications (Please refer to the datasheet for details.)

  • High-Quality Sound
  • Wide Operating Voltage Range: ±3.0 V to ±22.0 V
  • Low Distortion: 0.00005% typ. at f = 1 kHz
  • Low Noise: 5.5 nV/√Hz typ. at f = 1 kHz
  • Wide Gain Bandwidth Product: 45 MHz typ.
  • High Slew Rate: 11 V/μs typ.
  • Quiescent Current: 8.0 mA typ. (Dual)
  • Bipolar Input
  • Bipolar Technology
  • Package: EMP-8-AN, DFN3030-8-GQ (DFN8-W1) *Under Development

Applications

  • Home Audio
  • Professional Audio
  • Car Audio
  • Portable Audio

Availability and Pricing

Information availability and pricing please visit email: sales.europe@macnica.com.
