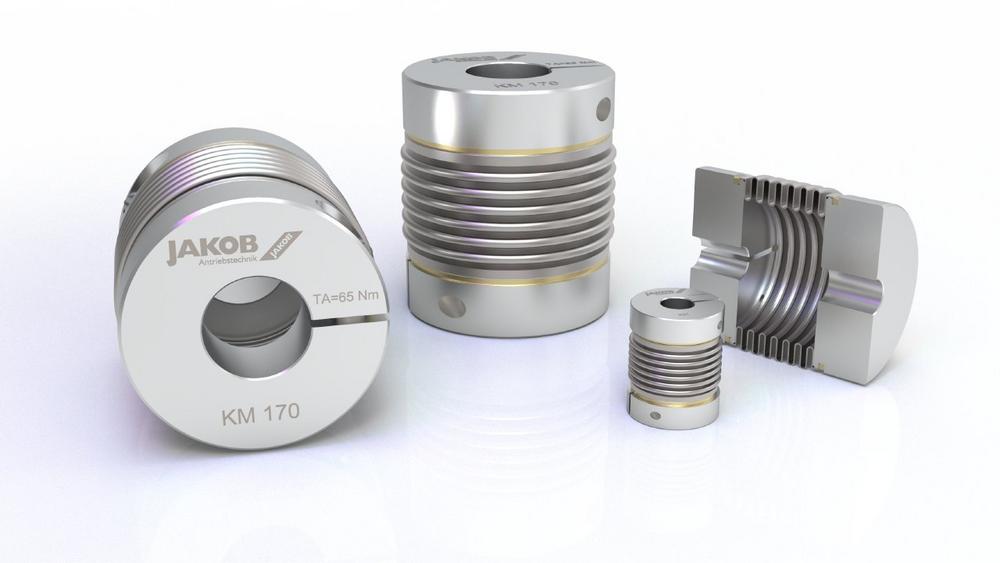

The clamping hub of the KM is equipped with the innovative easy-clamp system, which allows it to be pushed on easily with sufficient clearance. The preload force required for torque transmission is ensured by a single, radially accessible screw per hub. This simple and reliable connection allows uncomplicated installation with just a few movements, even in cramped conditions. In order to achieve the lowest possible moment of inertia, the hubs are made of high-strength aluminum.
The bellows and hub are connected using the backlash-free flanged press-fit process. In contrast to glued joints, this joining method has unlimited fatigue strength under critical operating conditions (-40°C to +200°C, chemicals, etc.) and can safely introduce the transmission torque of each bellows layer into the hub.
Metal bellows couplings of the KM series are available with nominal torques from 0.4 to 1300Nm.
JAKOB Antriebstechnik GmbH
Daimlerring 42
63839 Kleinwallstadt
Telefon: +49 (6022) 22080
Telefax: +49 (6022) 220822
http://jakobantriebstechnik.de/
![]()
