After the differential pressure tester CETATEST 825 has been available for some time, CETA presents further variants of the fourth generation of CETA test devices with the leak testers CETATEST 525 and CETATEST 725. Compressed air is used as the test medium.

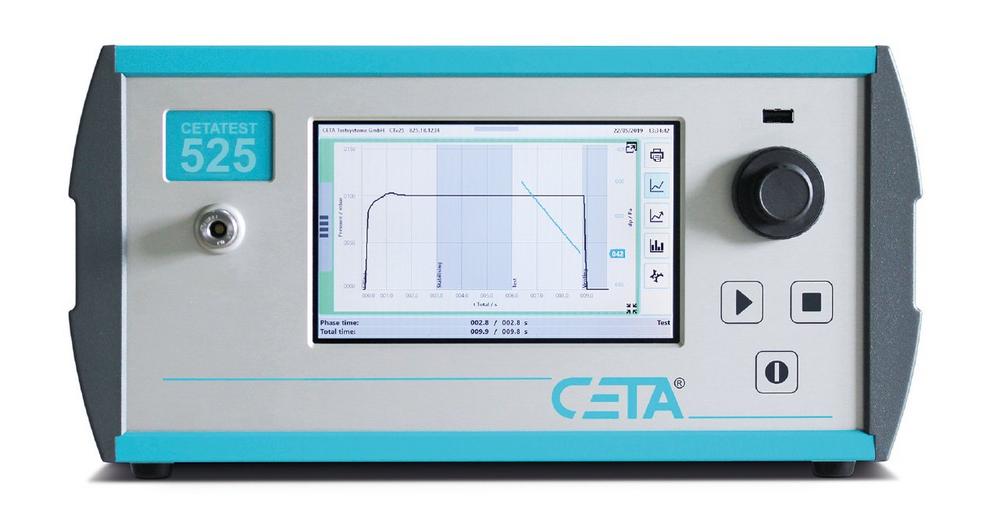

The differential pressure leak tester CETATEST 525 (successor of the CETATEST 515) has a very small measuring circuit volume and has been specially developed and optimised for leak testing of small-volume products. It is suitable for leak testing e.g. miniature valves, microswitches, RFID transponders, sensors, relays. In the "pressure loss" version, direct fillable test parts can be tested at a high cycle rate. The "sealed component with high resolution" version enables process-safe testing of encapsulated products. The smallest differences in volume from 0.03 cm³ with a basic volume of 10 cm³ can be reliably detected. For small-volume parts, the total testing time is only in the range of a few seconds.

The relative pressure leak tester CETATEST 725 (successor of the CETATEST 715) can be used for leak tests with leakage-related pressure gradient in the order of 20 Pa/s (at test pressures below 1 bar) or 30 Pa/s (at test pressures above 1 bar). A gauge pressure sensor is installed in the test device. This is used to monitor the test pressure. In pressure loss mode, its signal is amplified. This results in cost advantages compared to a differential pressure leak tester in which two sensors are used (gauge pressure sensor for test pressure monitoring, sensitive differential pressure sensor for pressure loss measurement). Which test device type is suitable for the specific application depends in particular on the permissible leak rate and the test part volume that can be filled.

The CETATEST x25 series has a housing with 4 height units and an integrated 7-inch touch screen. The intuitive and user friendly interface allows the display of a wide range of information (e.g. measurement curves, histograms). The combination of the advantages of a real-time capable microcontroller system for measurement data processing and an industrial PC architecture results in a wide range of possibilities. The ring buffer allows the storage of more than 1 million measured values. A total of 256 test programs are available.

The CETATEST x25 testers are fully interface-compatible with the predecessor series CETATEST x15. The established application software "CETA Soft 2G" can also be used with the new device series. A variety of bidirectional industrial interfaces are available, so that the CETATEST x25 series is well prepared for Industry 4.0 requirements.

As with the previous series, all leak testers of the CETATEST x25 series are supplied cost-neutral with a DAkkS calibration certificate (compliant with DIN EN ISO / IEC 17025) and a 3-year warranty (with optional extension to 5 years).

Both leak tester types will be available from the 3rd quarter of 2023. Further device variants (volume flow and mass flow testers) as well as multi-channel devices will follow soon.
