The right solution for every application

Hydrogen is considered a difficult medium because its particularly small molecules can penetrate even stainless steel and also damage a material’s structure causing embrittlement or cracks. It is therefore extremely important that measuring devices for hydrogen applications are made of the right materials.

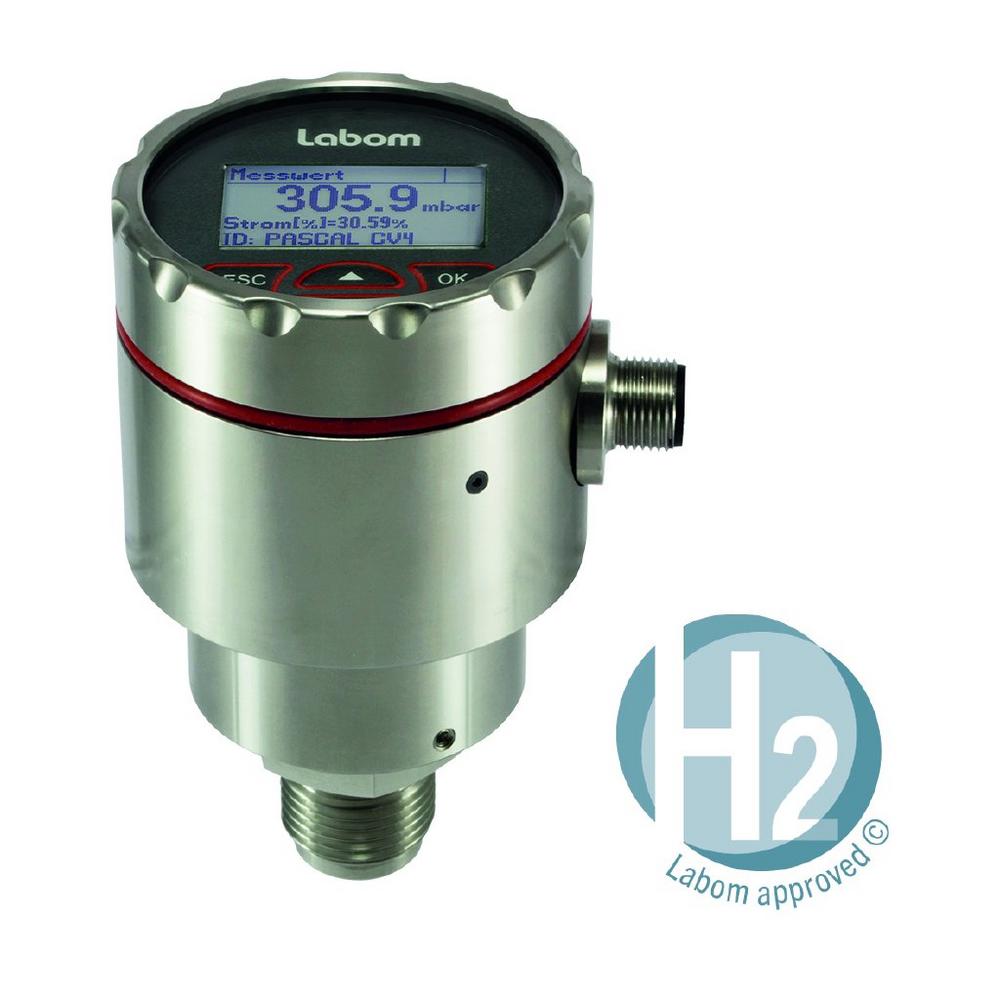

For over 20 years the company LABOM Mess- und Regeltechnik, based in the northern German town of Hude, has been making measuring devices for hydrogen applications. Drawn from this experience, LABOM has developed several series of pressure transmitters that can be used in both standardised and application-defined hydrogen processes. The measuring instruments of the PASCAL CV4 and PASCAL Ci4 series as well as COMPACT CA16 cover a measuring range between -1 and 1050 bar, depending on the capabilities of the individual pressure transmitter, can be used down to -40°C and are also certified with Exprotection and some with SIL. Hydrogen-proof stainless steels are used for the wetted parts, as well as polymers suited to hydrogen, such as NBR, EPDM and PVDF.

The hydrogen tool developed by LABOM can be used to assess the resistance of oil-filled measuring devices. This tool determines whether a diaphragm made of hydrogen-proof stainless steel is sufficient or whether additional gold plating is required. The special lattice structure of gold makes it impermeable to hydrogen atoms, but since gold plating is a relatively expensive option, use of the hydrogen tool to determine the most suitable material is recommended.

With the help of the hydrogen tool and the many different process connections offered by LABOM, pressure gauges for hydrogen use can be defined and produced individually.

Über die LABOM Mess- und Regeltechnik GmbH

For over 50 years LABOM has ranked among the quality leaders in the field of industrial pressure and temperature metrology. The German company specialises in the measurement and monitoring of pressure, fill levels and temperature. LABOM products are in use worldwide, primarily by industries for food, pharmaceuticals, biotech, chemicals, petrochemicals, power, environmental protection, mechanical and plant engineering, in addition to shipping. At present LABOM directly employs around 190 persons and maintains branches and representatives in over 40 countries.

Alongside a broad palette of standard products, one of the strengths of LABOM lies in producing customised solutions. The quality management system is certified according to DIN EN ISO 9001:2015, the Pressure Equipment Directive 2014/68/EU and ATEX 2014/34/EU. LABOM devices for hygienic use comply with EHEDG (European Hygienic Engineering & Design Group) standards.
