Excellent measuring performance, rugged design

The E+E humidity sensing elements used in the MOP301 are characterised by their long-term stability and resistance to contamination. They form the basis for high-precision and reliable humidity and temperature measurement.

The immersion probe is impressive mechanically with a rugged stainless steel enclosure with protection class IP66, an oil-resistant cable and a moulded M12 connector. It can be used in a temperature range of -40 to 120 °C (-40…248 °F) and at up to 20 bar pressure.

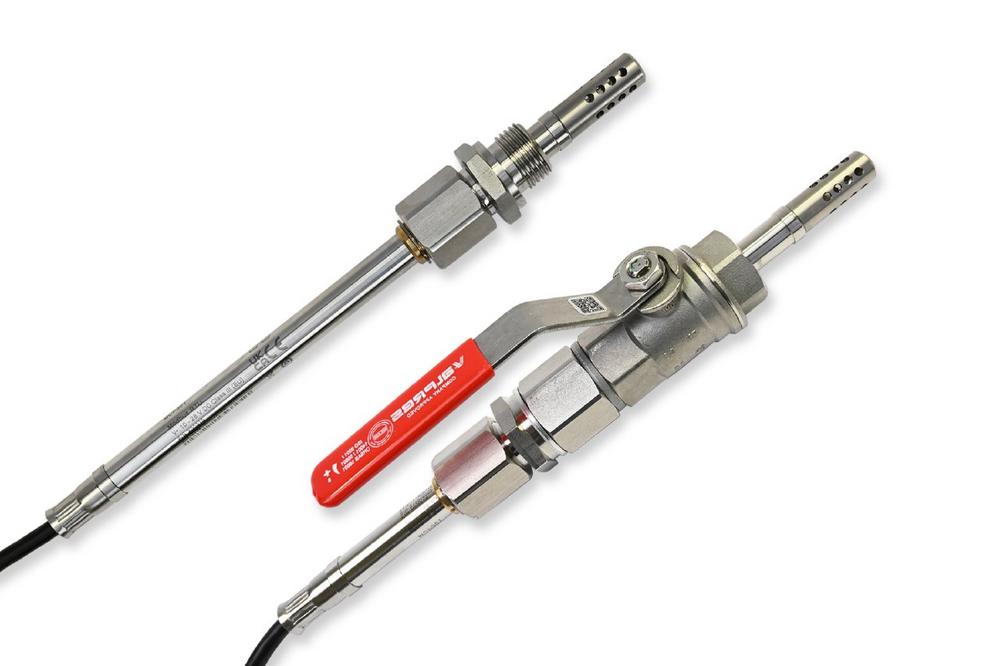

Various probe and cable lengths and the lean design enable particularly flexible installation of the MOP301. Thanks to the practical slide fitting, the immersion depth can be precisely set, and changed if needed. Using an optional ball valve, the probe can be installed and removed without interrupting the process and under pressure.

Measured values an interfaces

The MOP301 delivers the oil moisture content as an absolute or relative value. The water activity (a_w) states the relative moisture content of an oil and describes the relationship between the actual and maximum possible amount of dissolved water. The a_w value reveals how close the oil is to the saturation point at a specific temperature.

The water content (x) expresses the moisture content in absolute figures. It is stated in ppm or mg water / kg oil. The MOP301 calculates the water content based on the measured water activity and temperature. The oil-specific parameters required for calculation can be factory pre-configured, written via Modbus RTU, or set retroactively with the aid of the PCS10 Product Configuration Software.

The measured values are provided via the RS485 interface using the Modbus RTU protocol.

Extensible to a sensor unit

The MOP301 is compatible with the Sigma 05 sensor hub by E+E Elektronik. The probe can be plugged into the host device based on the plug-and-play principle and thus extended to a sensor unit with analogue outputs and an optional display.
