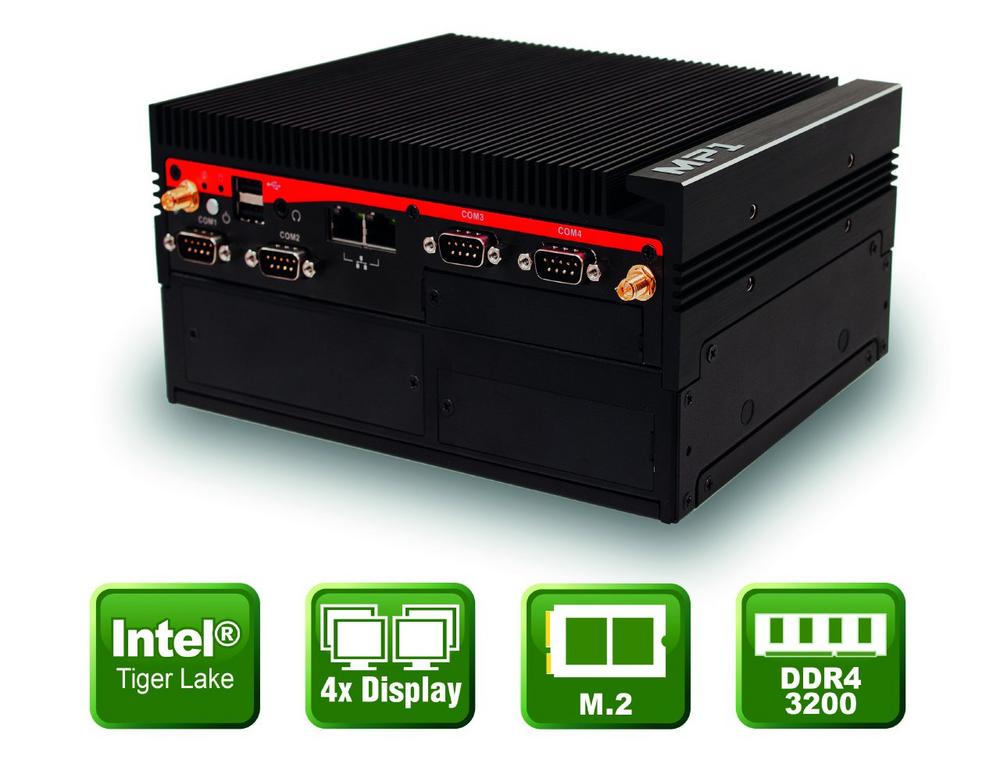

Two entry-level versions are available with dual-core processors, an Intel® Celeron® 6305 with 4MB cache and 1.8GHz clock speed and an Intel® CoreTM i3-1115G4E with 6MB cache and 2.2GHz base clock as well as 3.9GHz turbo clock.

For demanding computing tasks, a version with Intel® CoreTM i5-1145G7E is available, a quad-core processor with 8MB cache and 1.5GHz base clock as well as 4.1GHz turbo clock.

High-end computing applications run best on the Intel® CoreTM i7-1185G7E with four processor cores, 12MB cache and a base clock of 1.8GHz as well as a turbo clock of 4.4GHz.

All models in the MP1-11TGS-D series can accommodate up to 32GB of DDR4 SO-DIMM memory with a clock speed of 3200MHz and output up to four simultaneous video signals. The two entry-level variants feature Intel® UHD processor graphics, while the high-end versions use the improved Intel® Iris® Xe graphics unit. Two 2.5" hot swap drive bays are available for storage media. Furthermore, the MP1-11TGS-D series offers an M.2 2242/2260/2280/3042/3052 slot with B key and attached USB/PEX1/SATA signal, which is suitable for the use of 5G modules, an M.2 2230 expansion slot with E key and attached PEX/USB bus and a Mini-PCI Express slot.

In addition, the MP1-11TGS-D can accommodate up to two optional expansion modules. A CAN module, 4-way PoE GbE module, 4-way LAN module, RS-232/422/485 with 8 digital IOs and an Ignition module for use in vehicles are available.

In terms of interfaces, the MP1-11TGS-D offers a 2.5 Gigabit network interface with Intel® i225-LM IC and a Gigabit interface with Intel® i219-LM IC as standard. Furthermore, four USB 3.1 Gen.2, two USB 2.0, three RS-232, one RS-232/422/485 and one audio combo jack. Monitors can be connected to the two DisplayPorts V1.4 as well as the two HDMI ports V2.0b of the MP1-11TGS-D series. Resolutions up to 4096×2160 are possible depending on the video output. All MP1-11TGS can be operated fanless and defy ambient temperatures of -40 °C to 70 °C or -40 °C to 60 °C depending on the processor. With a voltage range of 12 to 36Volt DC, the MP1 series covers a common range. Depending on the requirements, the systems can be mounted on the front or side using a wall mount.

Product Link

https://www.icp-deutschland.de/index.php?stoken=4726B0F7&lang=0&cl=search&searchparam=mp1-11tgs-d

Datasheet

https://files.icp-deutschland.de/produkte/KC002653/web/icp/MP1-11TGS-D-embedded-PC-Tigerlake-datasheet-20210419.PDF

Specifications

• Fanless Embedded PC
• 11th generation Intel® Core^TM I processors (Tiger Lake-UP3)
• 32GB DDR4 SO-DIMM memory
• Quadruple display support
• 2 expansion slots
• 2x mini PCI Express Full Size
• Hot-swap SSD slots
• 1, HDMI, DP, GbE, 2.5GbE, RS-232/422/485

Applications

• Automation
• Industrial Control
• Machine Vision
• Data Logger
