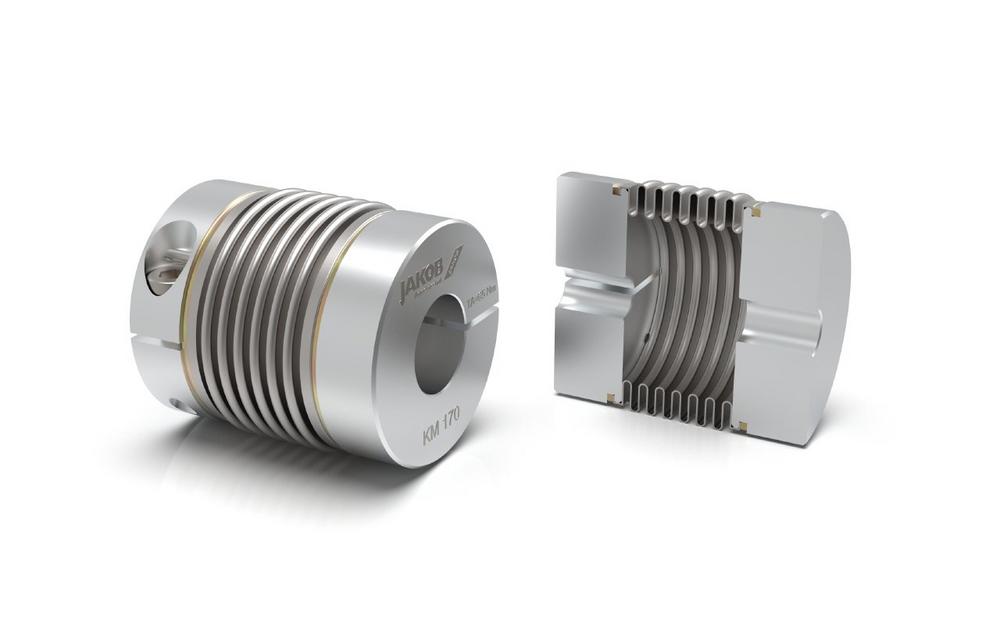

The clamping hub of the KM is equipped with the innovative Easy-Clamp-System, which enables it to be pushed on easily with sufficient clearance. The pretensioning force required for torque transmission is guaranteed by a single, radially accessible screw per hub. This simple and reliable connection allows uncomplicated installation in just a few steps, even in confined spaces. In order to achieve the lowest possible mass moment of inertia, the hubs are made of high-strength aluminum.
The connection between the bellows and the hub is made using the backlash-free flanged press-in process. In contrast to adhesive connections, this joining process has unlimited fatigue strength under critical operating conditions (-40 ° C to + 200 ° C, chemicals, etc.) and can safely introduce the transmission torque of each bellow layer into the hub.
Metal bellows couplings of the KM series are available with nominal torques from 0.4 to 1300Nm.
JAKOB Antriebstechnik GmbH
Daimlerring 42
63839 Kleinwallstadt
Telefon: +49 (6022) 22080
Telefax: +49 (6022) 220822
http://jakobantriebstechnik.de/
![]()
