New Vertical Positioning System with High Dynamics, Large Travel Range, and Weight Force Compensation

From genome sequencing through multiphoton fluorescence microscopy, deep tissue inspection, laser materials processing, and wafer inspection to magnetic tweezers in research … vertical positioning systems with large travel range, high dynamics and precision are required in numerous applications in microscopy and industry. With the new V‑308 voice coil PIFOC, PI now offers a magnetic direct drive based solution that unites all these requirements.

The core element of the V-308 PIFOC is a single axis slider with high-precision lateral crossed roller guides placed on the base body. The slider is driven by a centered PIMag® voice coil motor, which was specifically developed for high dynamics. The 7 mm large travel range can be limited upwards and downwards with adjustable hard stops by the user. Acceleration is up to 8 m/s², the maximum velocity 200 mm/s. This results in step-and-settle times of below 15 msec for 100 nm and 250 nm step sizes at ±15 nm error band. Therefore, a very fast positioning of the focusing unit, very fast data acquisition, and high productivity can be achieved.

The high-resolution optical PIOne linear encoder is used to achieve the high precision requested. A minimum incremental motion of 10 nm and a bidirectional repeatability of 25 nm (at 100 nm travel) can be realized.

Magnetic Weight Force Compensation

A special feature of the new V-308 PIFOC is the magnetic weight force compensation. This ensures a levitation of the slider and mounted load without power supply and it so prevents an uncontrolled crash in case of a power failure or when switching off the controller. For a flexible use of the axis – when switching the objective, for example – the user can adjust the counteracting force and compensate an overall load (objective and holder) of up to 1 kg. Because of this, the axis acts as a horizontal axis even when being used vertically.

Easy Integration Thanks to a Compact Design and Versatile Accessories

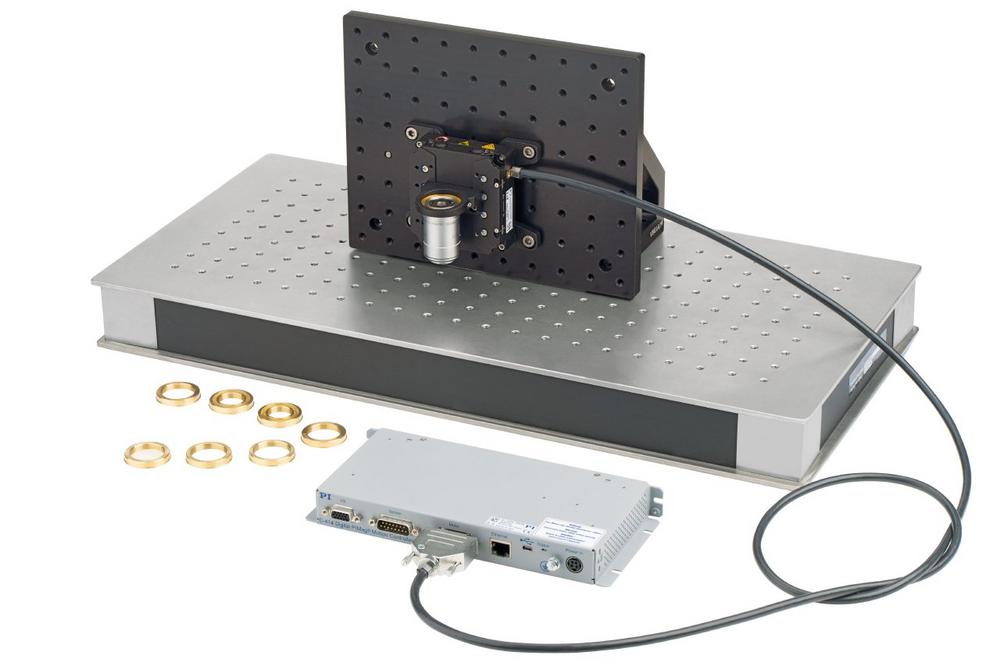

With dimensions of 87 x 77 x 30 mm (H/W/D), the drive is very compact. An adapter plate ensures mounting on an optical bench or plate, with a metric or imperial hole pattern. Two different objective holders (for vertical or horizontal mounting) as well as a set of adapter rings for different diameter objectives, up to size M32 x 0.75, are available.

As a standard, the V-308 PIFOC is offered with the specially developed C-414 controller. Alternatively, the axis can be operated with ACS controllers with built-in EtherCAT functionality. Users can actively control servo control parameters ("gain scheduling"), which in addition with other ACS features such as ServoBoost, can further enhance the performance.

Über die Physik Instrumente (PI) GmbH & Co. KG

PI (Physik Instrumente), headquartered in Karlsruhe, is the market and technology leader for high-precision positioning technology and piezo applications in the semiconductor industry, life sciences, photonics, and in industrial automation. In close cooperation with customers from all over the world and for 50 year now, PI’s specialists (approx. 1,300) have been pushing, again and again, the boundaries of what is technically possible and developing customized solutions as well as standardized solutions. More than 350 granted and pending patents underline the company’s claim to innovation. PI has seven production sites and 15 sales and service offices in Europe, North America, and Asia.
