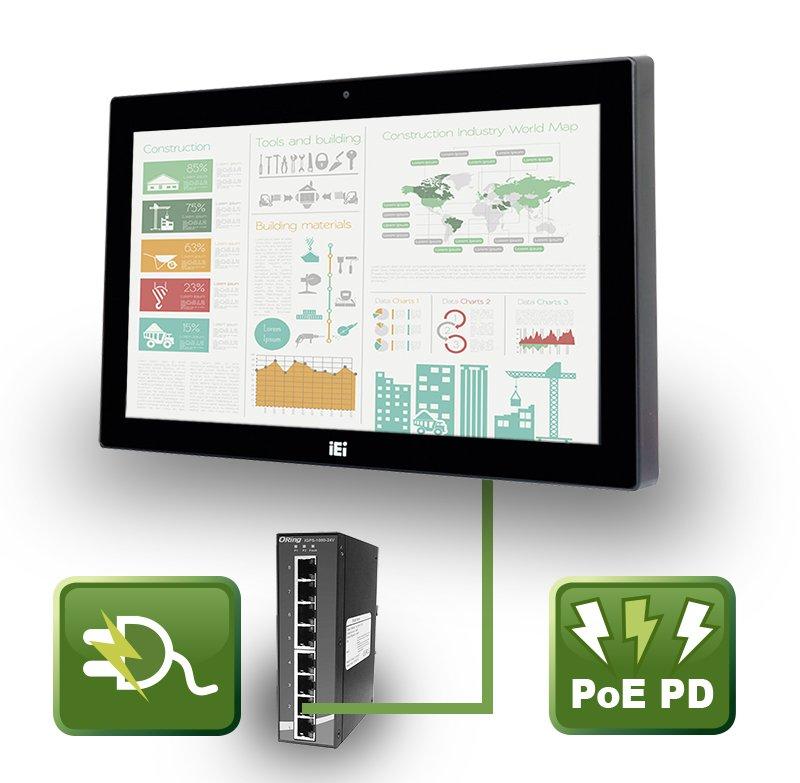

With the new interactive All-in-One PC AFL3-W07-AL2 ICP Germany extends its portfolio of compact PoE capable PCAP touch PCs for industrial use as operating and display unit. In addition to the previous model AFL3-W07-AL, the new variant AFL3-W07A-AL2 is now available with an adapted interface range. Common to both is the Intel® Celeron® N3350 processor from the Apollo Lake series, with up to 2.4GHz clock frequency, as well as 4GB DDR3L RAM ex works, which can be expanded to up to 8GB. The display installed in both variants with IP65 front protection offers a 16:9 aspect ratio with a resolution of 1024×600 pixels. The brightness is 500 cd/m² with a contrast ratio of 700:1. Both all-in-one PCs are equipped with a 10 point PCAP touch and offer a UV protection as well as a reflection reducing coating as a special feature. The AFL3-W07A-AL2 offers an M.2 2242 B+M key slot for solid state storage media, as well as a Gigabit Ethernet, two USB 3.2 with 5GB/sec, a serial RS-232/422/485 interface and an additional HDMI port for expanding the image output. WLAN according to IEEE802.11 a/b/ag/n/ac as well as Bluetooth V4.1 are integrated for wireless communication. As another special feature, the AFL3-W07-AL2 can be used as a PoE powered device. In addition to the 12 Volt DC connection, the AFL3-W07A-AL2 supports PoE in the IEEE802.3 af/at version. Using the VESA mounting option, the AFL3-W07A-AL2 can be mounted on a wall, stand or via an optional kit in a hole cutout. The all-in-one PC is designed for fanless operation in a temperature range of -20 °C to 50 °C. On request, ICP supplies the AFL3-W07A-AL2 pre-installed and pre-parameterized with industrial storage media and operating system as a ready-to-use system.

ICP. Industrial Computer Products …by people who care!

Product Link

https://www.icp-deutschland.de/industrie-pc/panel-pc-displays/panel-pc/all-in-one-afl3/afl3-w07a-al2-n1-p-pc-4g-r10.html?listtype=search&searchparam=afl3-w07

Datasheet

https://files.icp-deutschland.de/produkte/KC001981/web/icp/AFL3-W07A-AL_W07A-AL2_W10A_12A_W15A-AL-datasheet-20210128.pdf

Specifications

• 7" Panel PC with PoE functionality
• PoE according to IEEE802.3at/af
• Capacitive touch with anti-glare and UV protection
• Apollo Lake Intel® Celeron® processor N3350
• 8GB DDR3L memory
• LAN GbE, COM, USB
• 2 2242 slot B+M key
• Power input: PoE or 12VDC
• Operating temperature: -20°C~+50°C

Applications

• Automation
• PoE Powered Device
• HMI control systems
• Building Automation
• KIOSK Systems
• Infotainment Systems
• POS
