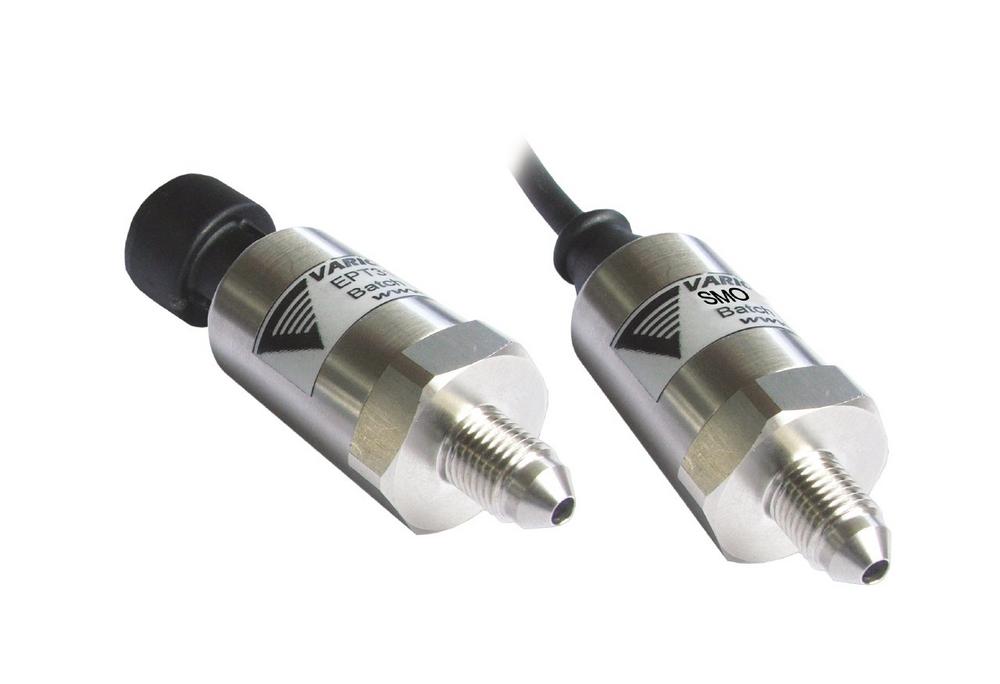

The EPT31H2 and SMO31H2 pressure sensors are based upon well-proven measurement technology with a piezo-resistive sensing element and ASIC circuitry encased in a fully sealed all-stainless steel housing. They feature IP67 protection class or optional IP69K for maximum durability in a silicon-free design with no internal O-rings. With additional EMI/RFI protection, low static and thermal errors and high resistance to shock and vibration across an operational temperature range up to up to 125°C , the H2 models deliver high accuracy, linearity and repeatability through several pressure range options from 1.0 bar to 1000 bar for gauge or optionally vacuum measurement (EC79 approval is limited to 700 bar for both model lines).
Output options available are 4…20 mA or 0.5…4.5 V from a 5 V DC supply. A choice of pressure port configurations match various pressure range options. Electrical interfacing is a 600 mm cable with free ends, Metri-Pack connector or M12x1 round connector.
Variohm EuroSensor is a manufacturer, distributor and supply chain partner providing complete sales and application support across a comprehensive range of position, force, pressure, load, and temperature sensor technologies – for demanding measurement applications across industry, construction, agriculture, motorsports, research and more.
