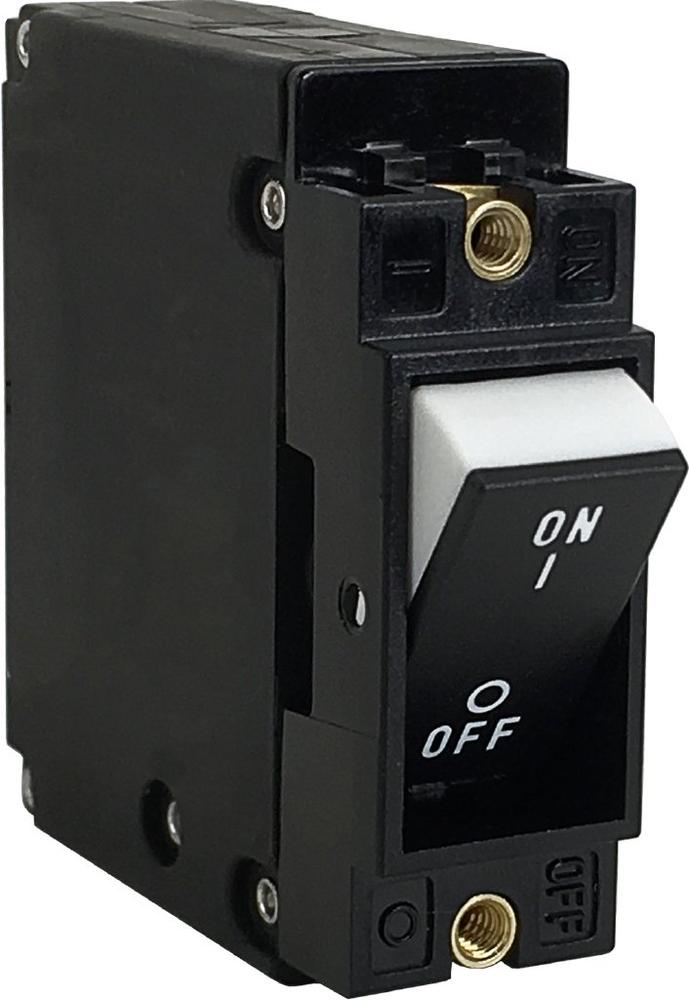

Measuring just 54 mm in depth and 57 mm in height, typical applications for the J-Series breaker include multiple uses across the datacom and telecom industries as well as utilization in AC power distribution units or power supplies, power dense motors and controls, or for marine applications requiring higher interrupting capacity. The range and diversity of the breaker can be attributed to several factors.
First, the J-Series breaker can be customized with a variety of actuator styles, including Carling’s Visi-Rocker and Curved Rocker in multiple color selections and combinations. Flexibility is further enhanced through a variety of terminal options on the back of the breaker, making it simple to mount under a broad range of conditions.
Safety is also a prominent feature of the J-Series breaker. In addition to the 10,000-amp maximum interrupting capacity, the interior of the unit features an enhanced arc chamber where arc splitter retainers, combined with integrated pressurizing walls, facilitate cooling through the use of magnetically induced splitter plates. The result is a compact breaker that ensures rapid tripping and cooling to prevent serious equipment damage and fire.
This one- to three- pole hydraulic-magnetic circuit breaker is also available with multiple delays and a maximum current and voltage rating up to 20 amps and 240 volts, respectively. Applicable agency approvals include UL 489, cULus and TUV EN 60947-2 certifications.
With its slim design, multiple actuator styles and safety features, including a maximum 10,000 amp interrupting capacity, the J-Series hydraulic-magnetic circuit breaker by Carling provides dependable performance for multiple applications.
Founded in 1920, Carling Technologies is a leading manufacturer of electrical and electronic switches and assemblies, circuit breakers, electronic controls, power distribution units, and multiplexed power distribution systems. With four ISO9001 and IATF16949 registered manufacturing facilities and technical sales offices worldwide, Carling Technologies Sales, Service and Engineering teams do much more than manufacture electrical components, they engineer powerful solutions! To learn more about Carling please visit www.carlingtech.com/company-profile.
