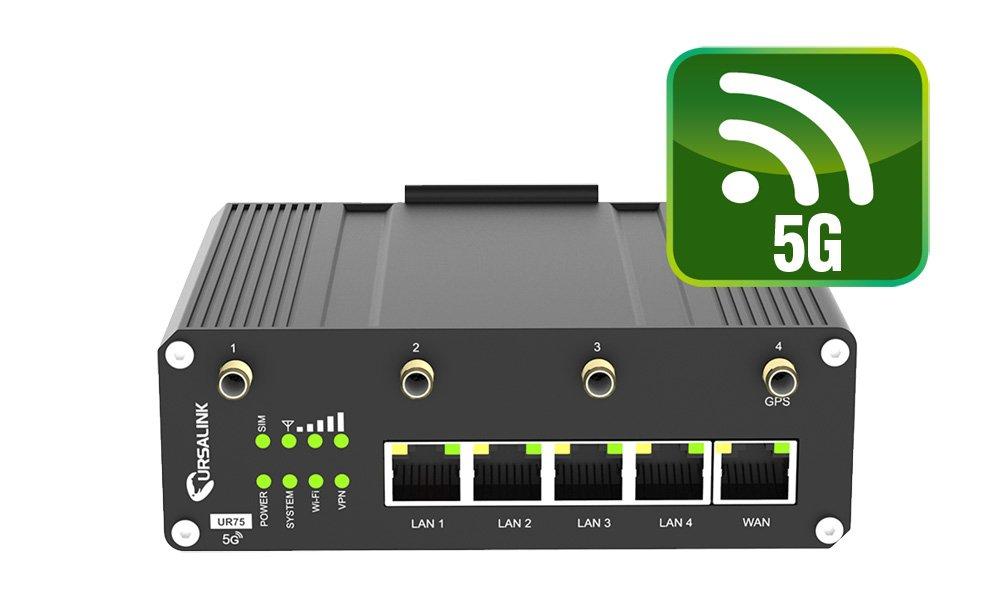

Fast data transmission, adaptable to customer-specific applications and expandable design. This is the promise of the new UR75-500GL router from ICP Germany. The UR75-500GL is fast due to the 5G cellular network, expandable due to its interface diversity and customizable due to the integrated embedded Python app manager. The UR75-500GL is equipped with a Qualcomm four-core ARM Cortex-A7 with 716.8MHz clock frequency. 512MB DDR3 RAM and 8GB Flash memory are installed as standard. A networking capability of multiple cellular networks through the two mini-SIM card slots is also present. Furthermore, the UR75-500GL offers five 10/100/1000 Mbps network interfaces, 802.11 a/b/g/n/ac WLAN, GPS modem, one serial RS-232 and one RS-485 interface, as well as galvanically isolated digital input and output. Optionally, the UR75-500GL can be equipped with Power over Ethernet functionality, additional memory cards, and equipped with a 4G LTE modem or two RS-485 serial ports. The UR75-500GL offers an embedded Python app manager. This is able to run specially programmed software on the router. With the app manager, it is easy to turn a router into an intelligent IoT device for edge computing to process its local data and transfer it to the desired location. For security, features such as VPN, IPsec, automated failover and fallback, SPI firewall and more can be set up. The IP30 metal case size 135x118x45mm can be easily mounted on a DIN rail or directly on the wall. The UR75-500GL shows its full performance in a temperature range from -40 °C to 60 °C. The maximum operating temperature is 70 °C. A maximum operating temperature of 70 °C is allowed. The UR75-500GL is easily configured via the web GUI. If multiple devices need to be managed, it is recommended to use the DeviceHub, which allows easy and centralized management of up to X devices. Suitable for the UR75-500GL, ICP Germany offers industrial storage media as well as suitable SIM cards from WhereverSIM.

ICP. Industrial Computer Products …by people who care!

Product Link

https://www.icp-deutschland.de/industrie-pc/kommunikations-produkte/gateway/edge/ur75-500gl-g-w.html

Datasheet

https://files.icp-deutschland.de/produkte/KC002584/web/icp/ur75-5g-datasheet-20210111.pdf

Specifications

• 5G mobile network (NSA/SA services)
• Dual SIM cards for backup functionality
• Qualcomm quad core processor
• Embedded Python app manager engine
• Versatile range of interfaces

(GbE ports, PoE, GPS, WLAN, IO, serial ports)

• DIN rail mounting
• Robust housing

Applications

• M2M and IoT applications
• Remote management
• Industrial Automation
• Augmented Reality Applications
• 3D video, UHD applications
• Smart Home and Building applications
• Smart City Applications
