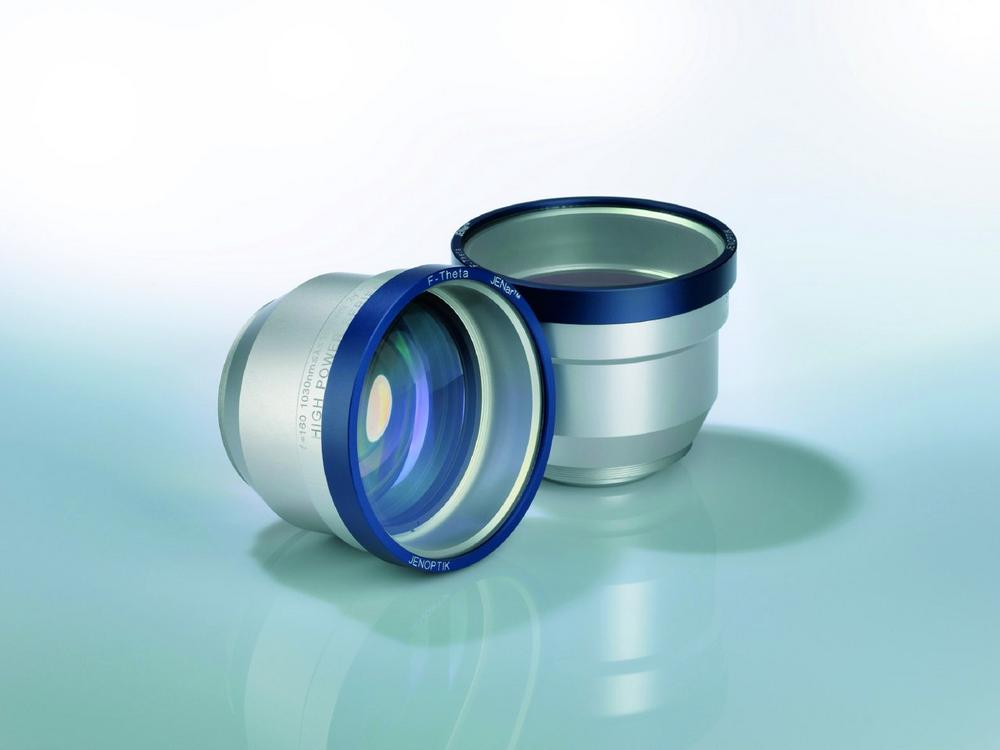

The new F-theta lens is specially designed for the application of laser foil cutting for batteries with 1064-nanometer lasers and is suitable for high-volume serial production with ultrashort-pulse lasers. When developing this solution, Jenoptik took into account the requirements of this cost-optimized market which led to a compact and competitive lens. The lens joins Jenoptik’s Silverline^TM lens family for laser applications in the automotive supply market.

Thanks to the use of low-absorption fused silica and a robust optical coating, the F-theta lens is suitable for applications with ultrashort-pulse lasers and outputs into the kilowatt range. With a focal length of 160 millimeters and a minimum spot size of around 23 micrometers, workpieces can be processed in a scan field of up to 50 x 50 millimeters. The optimized lens design and an innovative lens mounting allow the full performance of the lens to be exploited while not having any back reflections in the lens.

Silverline^TM lenses are used across many sectors for applications such as ablating, drilling, welding or soldering of high-precision structures in plastics and metallic compounds. They convince with high damage threshold and guarantee high-precision and reproducible working results.

Jenoptik and its Division Light & Optics

Jenoptik is a globally operating technology group. Optical technologies are the very basis of our business with the majority of our products and services being provided to the photonics market. Our key target markets primarily include the semiconductor equipment industry, the medical technology, automotive and mechanical engineering, traffic, aviation as well as the security and defense technology industries. Jenoptik is listed on the Frankfurt Stock Exchange, has more than 4,100 employees and generated revenue of approx. 855 million euros in 2019.

The Light & Optics division is a global OEM supplier of solutions and products based on photonics technologies. Jenoptik provides a broad portfolio of technologies combined with deep experience of more than 25 years in the fields of optics, laser technology, digital imaging, opto-electronics and software. Our customers are leading machine and equipment suppliers working in areas such as semiconductor equipment, laser material processing, healthcare & life science, industrial automation, automotive & mobility and safety, as well as in scientific institutes.

As a development and production partner, the Light & Optics division focuses on advancing cutting-edge technologies to improve our customers‘ system performance and ultimately realize product outcomes that reach new heights enabled by our highly-integrated photonic solutions. The systems, modules and components based on photonics technologies help our customers overcome their future challenges.
