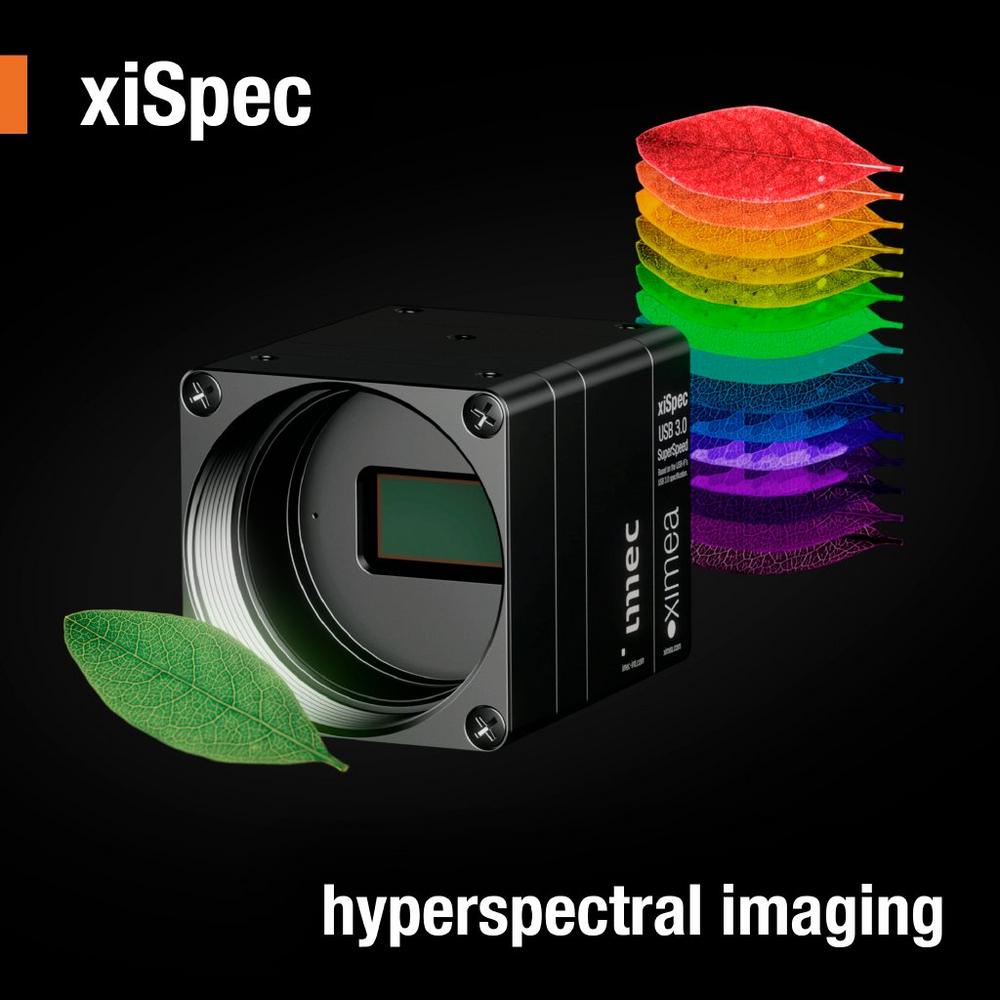

While maintaining the previous dimensions of the cameras of only 26.4 x 26.4 x 32 mm and a flyweight of only 32g, the camera housing and the bandpass filters have been optimized to improve the spectral performance of the cameras. Each xiSpec2 camera is individually calibrated.
The new xiSpec2 camera series consist of the following models:
MQ022HG-IM-SM4X4-VIS2, Spectral Range 480-625
MQ022HG-IM-SM4X4-RN2, Spectral range 600 – 860
MQ022HG-IM-SM5X5-NIR2, Spectral range 665 – 960
MQ022HG-IM-LS150-VN2, Spectral range 470 – 900
New starter kits will be offered to match the new cameras to ensure a smooth start-up.
The snapshot cameras will be delivered with imec’s HSI-Mosaic suite, access to imec’s hyperspectral API and XIMEA’s camera SDK.
The line scan cameras will be sold to OEM customers after clarification of the project use.
As part of the collaboration, XIMEA and imec offer xiSpec customers tailored support to integrate the hyperspectral cameras into their application.
The standard xiSpec2 cameras come with a micro-B USB3 interface. For use in compact integration projects, models with USB3 flat-ribbon connection or PCIe will also be available in a later phase. The PCIe interface enables bandwidths of 10 Gbit/s with lowest power consumption and allows access to the maximum framerates of the sensors used.
The new xiSpec2 cameras can be ordered and delivered starting December 2020.
XIMEA develops, manufactures, and distributes industrial and scientific cameras. These high-end and specialized cameras utilize modern CMOS and sCMOS sensors, combined with high-bandwidth USB3, Thunderbolt and PCIe interfaces. Among XIMEA’s core competencies, you will find the smallest form factors around any given sensor package, robust housings, high-speed interfaces with low latencies, power-efficiency, and versatile implementation options.
A 50/50 mix of OEM solutions and series production along with a reliable supply and support guarantees innovative and technology driven projects.
XIMEA serves all types of tech companies around the world, from global players to small start-ups. Its camera technologies allow the customers to make their applications possible, or to elevate their products into new levels.
Together with their clients, XIMEA faces specific requirements and solves individual challenges, not only with standard products but also with modifications or full custom designs.
The latest innovations include tiny USB3 cameras, PCIe streaming cameras (high-speed, ultra-resolution 8K and beyond, large sensor formats), cooled scientific and hyperspectral imaging cameras, X-Ray and a multi-camera platforms for high-bandwidth applications.
