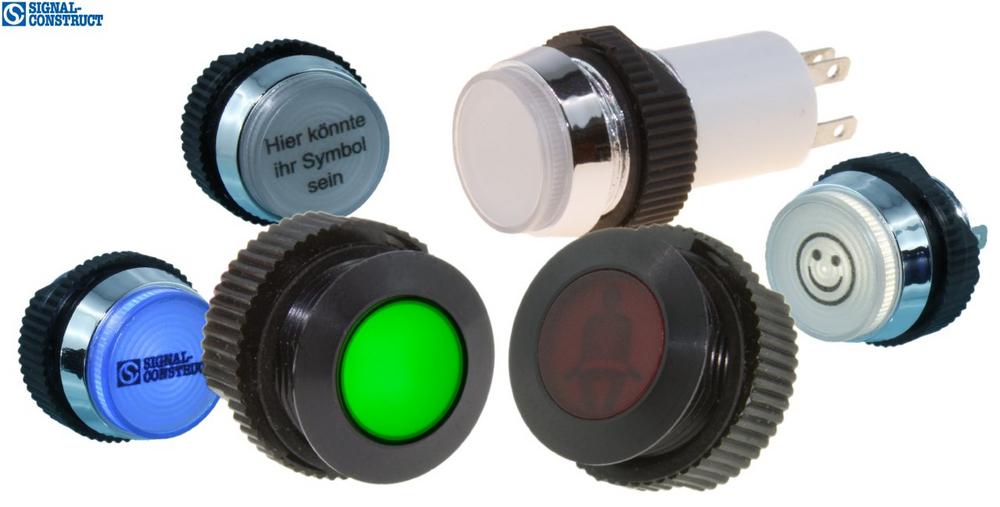

New LED indicator light series SK / SM 16 in IP 67
Due to the demand for signalling lamps with high brightness – especially for outdoor use – Signal-Construct has designed 2 new product lines.
Based on the standard version SKCD 16, the SKCH series is a type with significantly higher brightness. At the same time, the 2.8 x 0.5 mm flat connectors were replaced by the more common size 2.8 x 0.8 mm.
In addition, a super-flat version with a metal housing was designed, based on LEDs produced in-house with a diameter of 12.8 mm.
Based on the standard version SKCD 16, the SKCH series is a type with significantly higher brightness. At the same time, the 2.8 x 0.5 mm flat connectors were replaced by the more common size 2.8 x 0.8 mm.
In addition, a super-flat version with a metal housing was designed, based on LEDs produced in-house with a diameter of 12.8 mm.
These types are available as standard with a natural or black anodized housing for voltages of 12/14 or 24/28 V DC.
The LEDs are ideally suited for laser engraving with symbols or characters, which can be applied in our plant into the inside of the LED housing with high contrast and abrasion resistance. Individual, customer-specific prints, logos and symbols can be implemented within wide limits.
Optionally all indicators can also be supplied with stranded wires or jacketed cables up to 0.56 mm², instead of the standard tab terminal connectors.
Available versions:
- NEW! SMEP16 (aluminum housing black, super flat)
- NEW! SMFP16 (natural aluminum housing, super flat)
- SKCE16 (plastic housing, 3-color LED)
- SKCD16 (plastic housing, chrome-colored metalized)
- SKED16 (plastic housing, black)
- NEW! SKCH16 (super bright, plastic chrome-colored metallized)
- NEW! SKEH16 (super bright, black plastic)
Please click on the article numbers to get to the respective product information with data sheet.
Contact us for your personal offer!
Über die Signal-Construct elektro-optische Anzeigen und Systeme GmbH
Signal-Construct has been an innovative owner-managed family company with a focus on the development and manufacture of opto-electronic parts and components for more than 40 years.
The wide range of products offers high-quality, customer-oriented and sustainable solutions for a wide range of applications, whereby a profound know-how is available due to a deliberately high level of vertical integration.
The focus is on illuminations for controls and indicator lights in the industrial and aviation sector, reading lights for rail vehicles as spots or with flexible metal tubing, LED spots for accent lighting, and status indicators for front and PCB installation.
The production program is supplemented by standard and customer-specific light guide components and an area of LED processing, in which the processing of THT-Visible as well as IR and photodiodes or the reworking into SMT-processable components is possible.
<strong>Signal-Construct. LED Technology Made in Germany. Since 1978.
