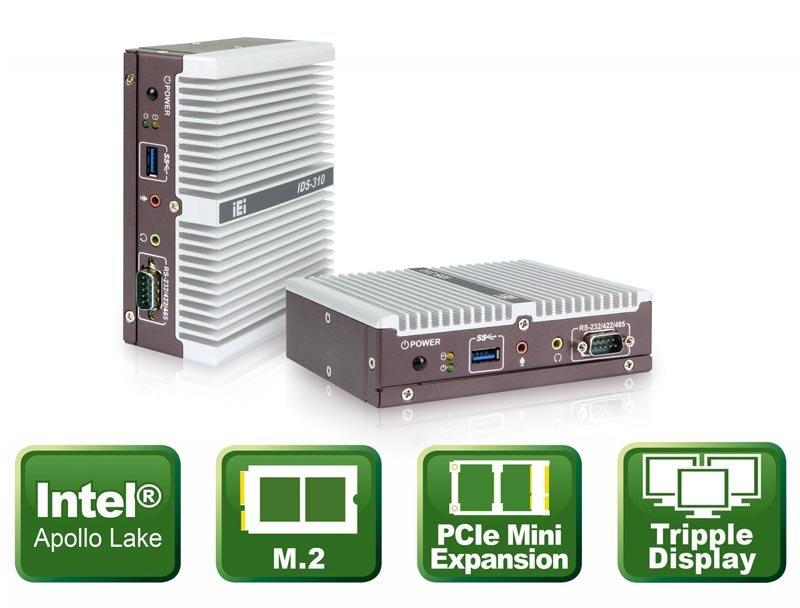

The IDS-310-AL digital signage embedded system from ICP Germany offers three advantages. Ultra-compact, low maintenance and a triple HDMI image output. The ultra-compact IDS-310-AL is offered in two housing variants. Variant one with 0.5 litre or 137x103x38 mm is equipped with a dual core Intel® Celeron® N3350 processor and offers a basic clock frequency of 1.1GHz, which can be increased to 2.4GHz. Variant two with 0.7 litre or 137x103x52 mm is equipped with a four-core Intel® Celeron® processor J3455 with 1.5GHz basic frequency and a turbo frequency of 2.3GHz. Both versions offer two GbE LAN, one adjustable RS-232/422/485, and three USB 3.2 Gen.1 interfaces. For expansion, the Mini-PCI Express slot with PCIe, USB and SATA signal attached or the M.2 2230 slot with PCIe and USB signal attached can be used.  The IDS-310-AL supports up to 8GB DDR3L SO-DIMM memory and is delivered with 4GB RAM pre-installed as standard. The cooling concept of the IDS-310-AL does not require a fan, making it low maintenance. For image output, the IDS-310 offers three HDMI ports with HDMI standard 1.4b. The chipset delivers a maximum resolution of 3840×2160 pixels at 30Hz. In addition to wall mounting, the IDS-310 also supports VESA mounting. The IDS-310 is designed for a temperature range of -20 °C to 60 °C. The power consumption of the IDS-310 in the standard version is specified as a maximum of 26.4 watts at 12 volts DC. Upon customer request, ICP Germany delivers the IDS-310-AL embedded PC with industrial storage media, expansion cards and pre-installed operating system as a ready-to-use system.

ICP. Industrial Computer Products …by people who care!

Product link:

https://www.icp-deutschland.de/index.php?lang=0&cl=search&searchparam=ids-310

Datasheet:

https://files.icp-deutschland.de/…

Specifications

• Ultra compact embedded PC with Intel® Celeron® J3455
  or N3350 Apollo Lake SoC
• 8GB DDR3L SO-DIMM working memory
• 3x HDMI 1.4b 4K
• COM, Dual LAN GbE, USB 3.2
• extensions: M.2 and PCIe Mini Slots
• Optional I/O: MicroSD slot, WiFi 802.11 a/b/g/n/ac, TPM2.0
• Voltage input: 12VDC
• Operating temperature: -20°C ~ +60°C
• VESA or wall mounting

Applications

• digital signage
• Visualization
• industrial computer
